Shop By Brand: Heco

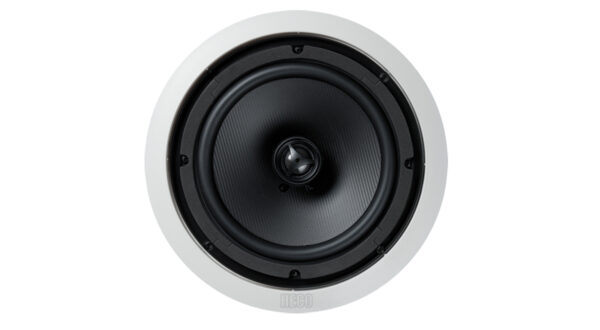

    In-ceiling speaker, 2-way configuration

    HECO´s INC 82 is the largest model in the Install Basic series. Its nominal diameter of 200 mm enables a powerful reproduction of the bass range and a high maximum volume. The waterproof textured polypropylene cone and the specially coated fabric dome tweeter deliver a fully-fledged sound pattern in conjunction with a high quality 2-way crossover. Its coaxial driver configuration makes it particularly suitable for ceiling installation. The pivoting tweeter and level adjustment option mean the acoustics can also be ideally adapted to the respective installation conditions. The grille, which can be removed for installation purposes, provides a seamless transition to the discreet mounting frame.

    Technical specifications

    PRINCIPLE : Built-in loudspeakers SENSITIVITY (2.8V/1M) : 91 dB EQUIPMENT : 2 x 8“ woofer, 25 mm tweeter IMPEDANCE : 4 Ohms CROSSOVER FREQUENCIES : 3.600 Hz POWER HANDLING (RMS/MAX) : 100 / 180 watts MOUNTING DIMENSIONS (Ø) : 237 mm OUTER DIMENSIONS Ø : 271 mm MOUNTING DEPTH : 88 mm FREQUENCY RESPONSE : 34 - 28.000 Hz RECOMMENDED AMPLIFIER OUTPUT : 30 - 180 Watts

    Highlights

    PRINCIPLE

    • Built-in loudspeakers

    EQUIPMENT

    • 2 x 8“ woofer
    • 25 mm tweeter

    FEATURES

    • In-wall/in-ceiling loudspeaker
    • Special clamping mechanism for easy installation
    • Moisture-proof speaker system, suitable for use in humid rooms (bathroom)

    CABINET

    • Solid protection grille

    TWEETER

    • Coated silk soft dome tweeter

    CROSSOVER

    • Crossover with high-quality components and 3 settings for the tweeter level

    CONNECTIONS

    • Gold-plated push terminal

    MOUNTING DIMENSIONS (Ø)

    • 237 mm

    MOUNTING DEPTH

    • 88 mm
