Heco Install Basic INC 262

Shop By Brand: Heco

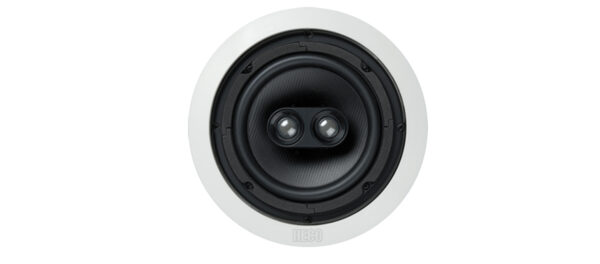

In-ceiling speaker, 2x2-way configuration

HECO´s INC 262 is the model for special applications in the Install Basic series. The speaker is closely related to the INC 62, however, unlike its sister model it features a dual voice coil for the bass-midrange and two 19 mm fabric dome tweeters. This special configuration means the speaker can either be operated with a mono or stereo signal. The desired operating mode is set, just like the tweeter level, via a switch on the crossover. Its coaxial driver configuration makes it particularly suitable for ceiling installation. The grille, which can be removed for installation purposes, provides a seamless transition to the discreet mounting frame.

Technical specifications

PRINCIPLE : Built-in loudspeakers SENSITIVITY (2.8V/1M) : 90 dB EQUIPMENT : 160 mm woofer 25 mm tweeter IMPEDANCE : 2 x 4 Ohm CROSSOVER FREQUENCIES : 3.800 Hz POWER HANDLING (RMS/MAX) : 80 / 150 watts MOUNTING DIMENSIONS (Ø) : 193 mm OUTER DIMENSIONS Ø : 228 mm MOUNTING DEPTH : 75 mm FREQUENCY RESPONSE : 36 – 28.000 Hz RECOMMENDED AMPLIFIER OUTPUT : 30 - 160 watts

Highlights

PRINCIPLE

  • Built-in loudspeakers

EQUIPMENT

  • 160 mm woofer
  • 25 mm tweeter

FEATURES

  • In-wall/in-ceiling loudspeaker
  • Special clamping mechanism for easy installation
  • Moisture-proof speaker system, suitable for use in humid rooms (bathroom)

CABINET

  • Solid protection grille

TWEETER

  • Coated silk soft dome tweeter

CROSSOVER

  • Crossover with high-quality components and 3 settings for the tweeter level

CONNECTIONS

  • Gold-plated push terminal

MOUNTING DIMENSIONS (Ø)

  • 193 mm

MOUNTING DEPTH

  • 75 mm
