AudioQuest PowerQuest 2 (Schuko) – Power Conditioner

Shop By Brand: AudioQuest

AUDIOQUEST POWERQUEST 2 SCHUKO- POWER CONDITIONER

6 Outlets

•1 x 4K/8K Video Optimized Linear Filter Outlet •1 x High-Current Outlet •4 x Linear Filter Outlets Dimensions: 15.47" L x 3.15" W x 6.02" H

Enhance your audio and video entertainment experience with PowerQuest®

Our power filtration removes more noise and distortion than most common power conditioners, dramatically improving your system's performance. Unlike traditional surge protectors, non-sacrificial surge suppression prevents both high voltage and current from damaging your equipment, ensuring that your PowerQuest device won’t fail over time. In addition, the PowerQuest PQ-2 features both a slim profile and a rugged floor-mounting stand that makes it ideal for mounting behind cabinets. Power cords plug straight down to the top-layer AC outlets, making installation trouble free. For those who prefer shelf mounting, the bottom stand can be easily removed. This allows easy access to all six power outlets. Sending clean power to your A/V system was never so simple or convenient.

HOOK-UP GUIDE

The PQ-2 outlets have been engineered to ensure optimum performance from your home entertainment system. For the very best results, please use the hook-up recommendations below when connecting your system to the PQ-2.

OUTLET 1

4K/8K Video Optimized Linear Filter: Best when connected to video screens, televisions, projectors, or universal players.

OUTLETS 2, 3, 4, 5

Linear Filter: Best when connected to audio/video source components, computers, modem, or router.

OUTLET 6

High-Current: Best when connected to soundbar, power amplifier, audio/video receiver, or subwoofer.

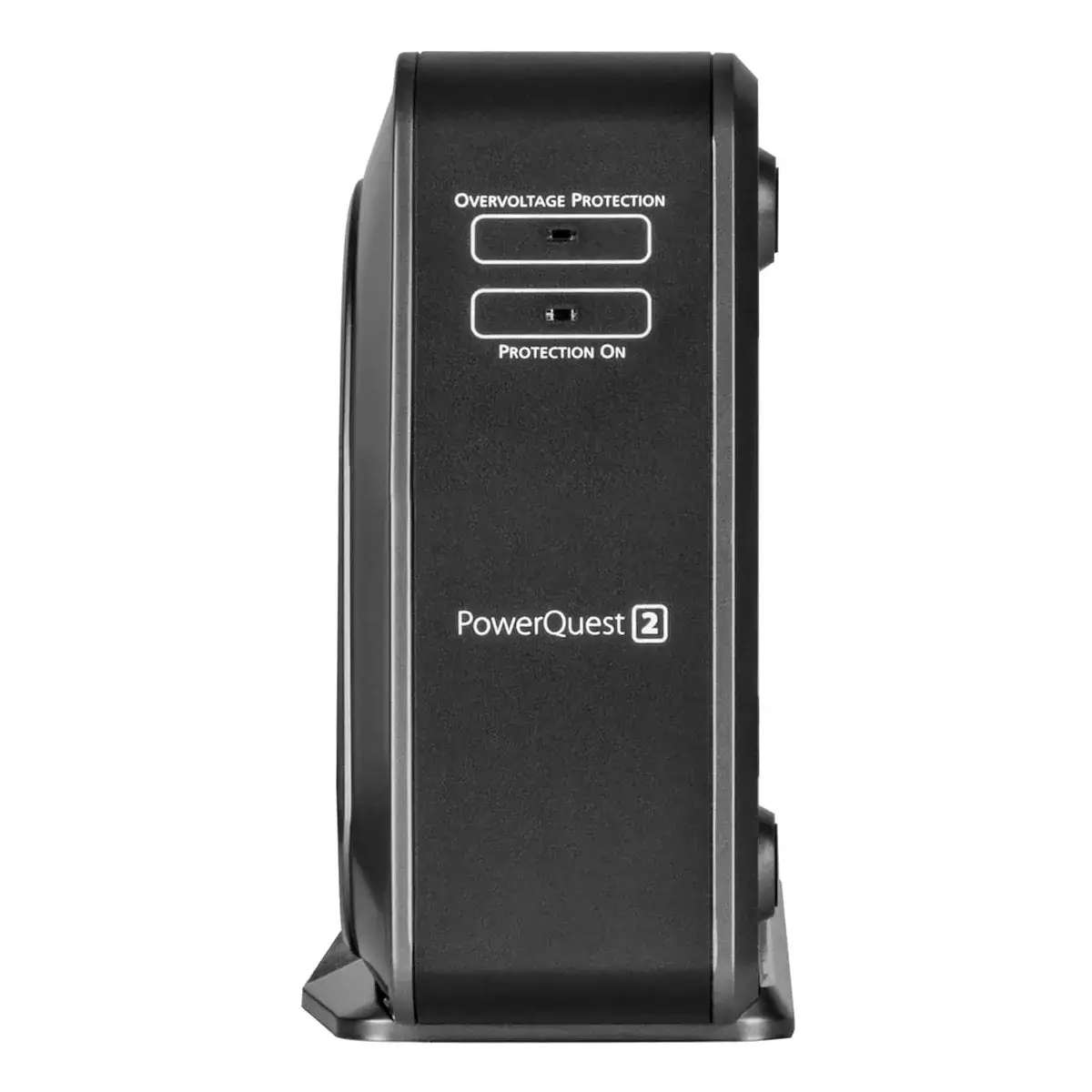

EXTREME VOLTAGE SHUTDOWN

140VAC: Will activate the main power circuit relay to open within less than 0.25 seconds; automatically resets once the incoming power is within a safe range.

NON-SACRIFICIAL SURGE PROTECTION

Nothing to damage with repeated 6000V/3000A input surge tests, which is the maximum that can survive a building’s AC electrical panel.

LINEAR FILTER

Differential-Mode Noise Dissipation: In excess of 22dB reduction from 30kHz-1GHz. Filter linearized for dynamic (rising) line impedance with frequency from 0.05 Ohms (source) and 10 to 50 Ohm load, (system current dependent).

4K/8K VIDEO OPTIMIZED OUTLET

In addition to the Linear Filter, this outlet offers additional Noise-Dissipation technology to maximize TV performance.

SIGNAL LINE PROTECTION

CABLE/SATELLITE

INPUT CURRENT MAXIMUM CAPACITY

15 AMPS RMS

USB CHARGE CAPACITY

2X PORTS – TOTAL CAPACITY 3.4 AMPS
